CYD-Klipper

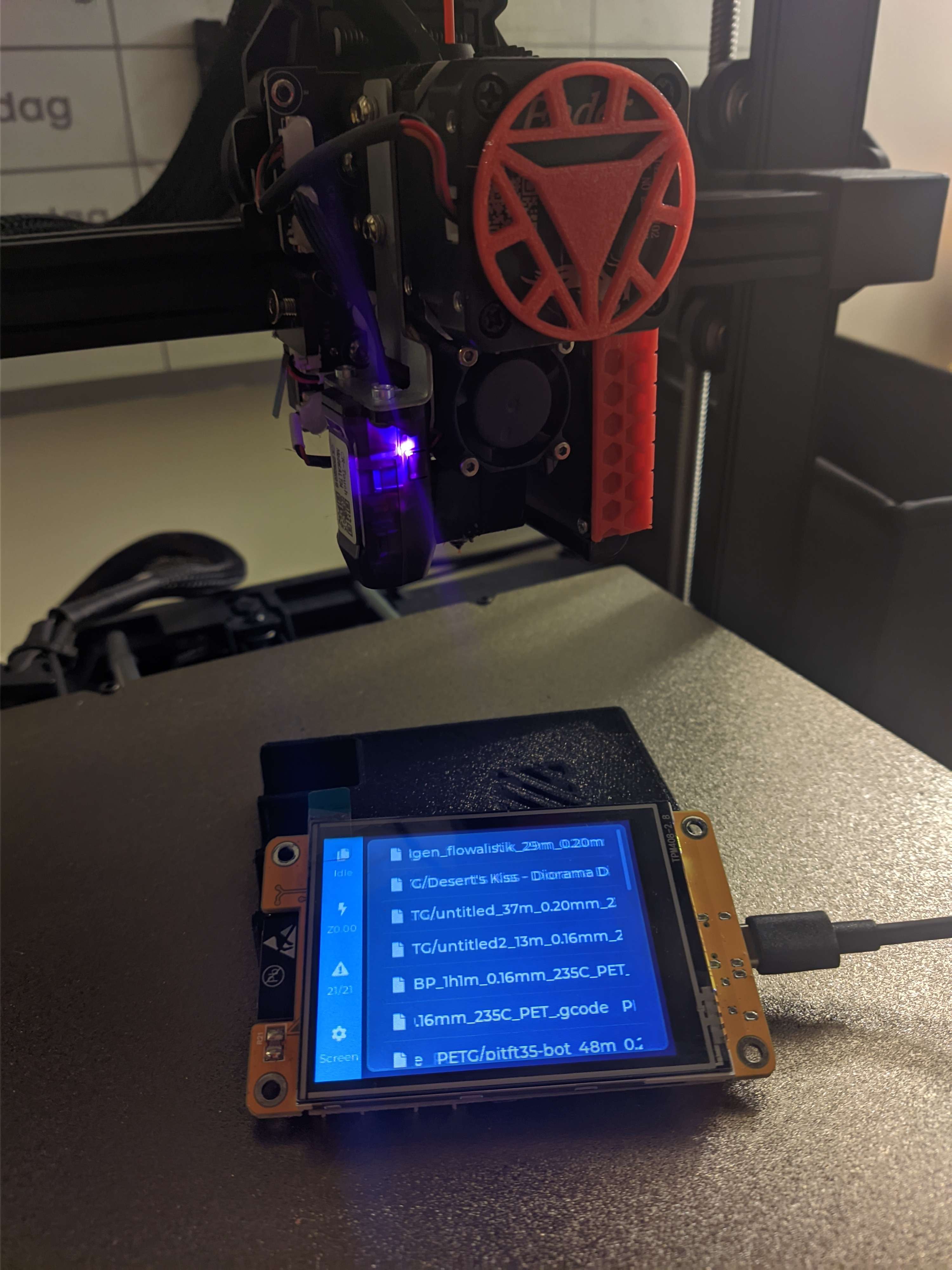

An implementation of a wireless Klipper, Bambu and Octoprint status display on an ESP32 + screen. Uses Moonraker to fetch data.
A simple and cheap solution to use a dedicated screen with Klipper, a 3d printing Firmware. Also now with Bambu Lab and Octoprint printers!
Required hardware
A ESP32-2432S028R is required to run this project. You can find out where to buy these on the "ESP32 Cheap Yellow Display" repository.
Features

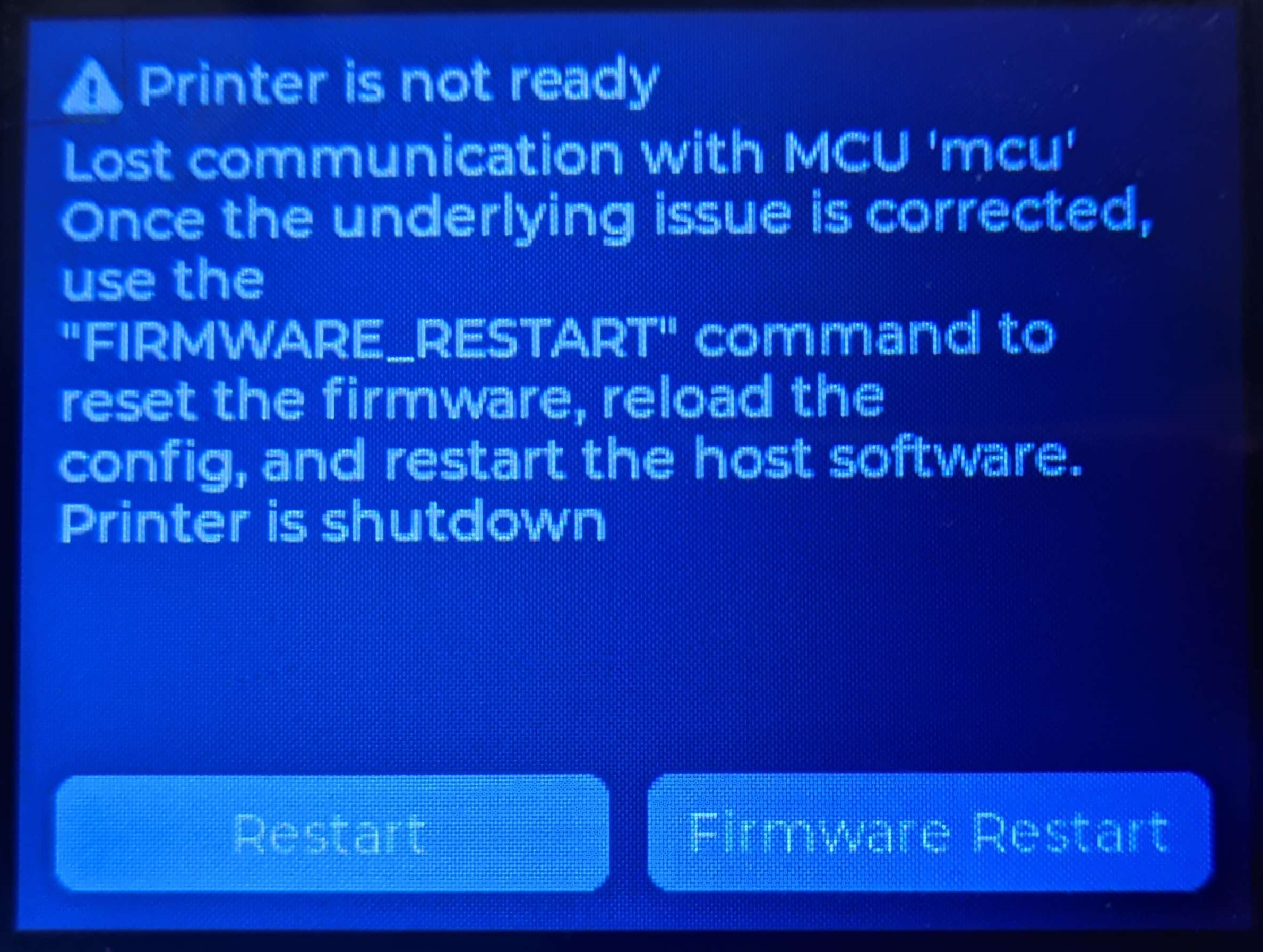

- View printer status

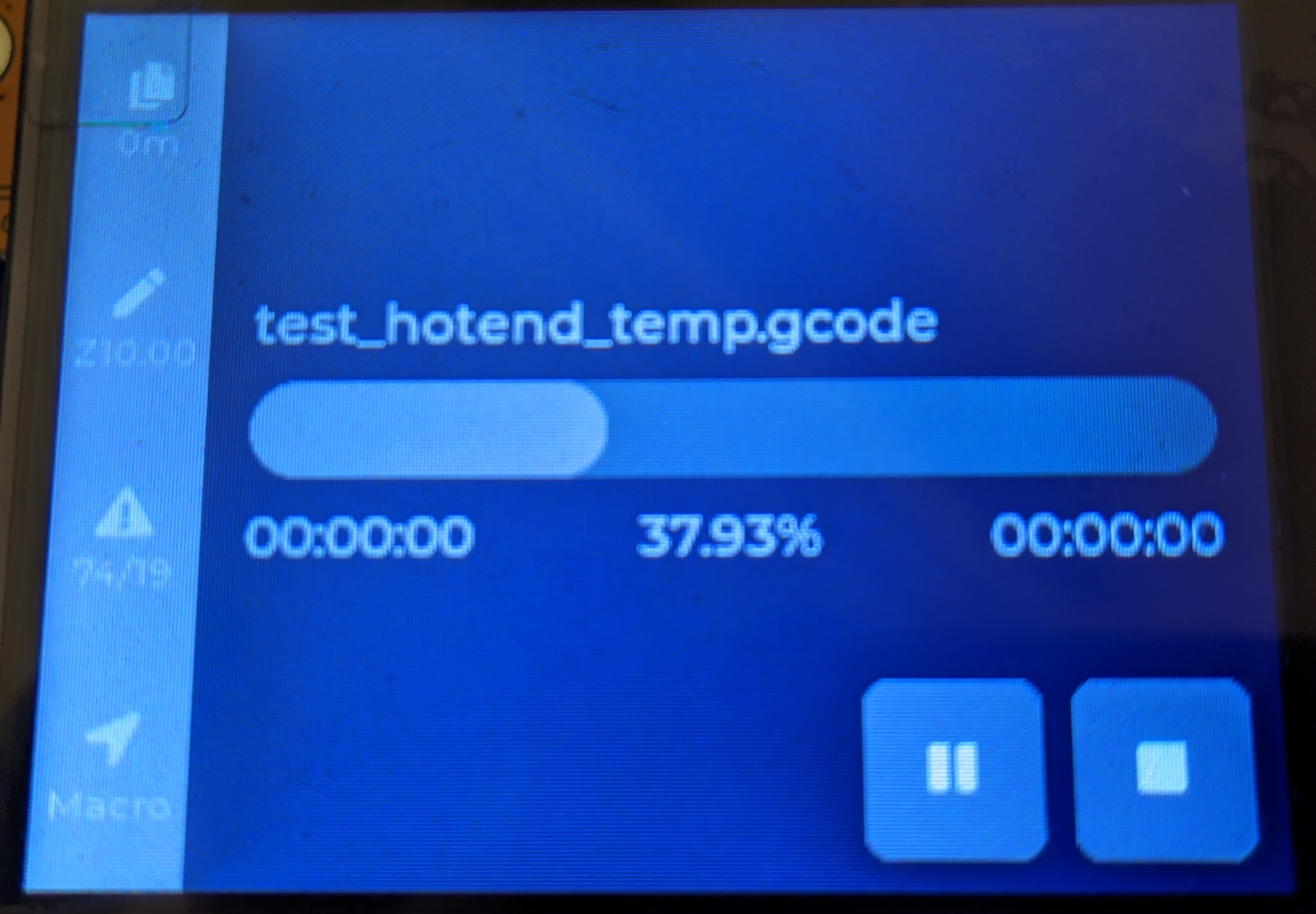

- View print progress and print statistics

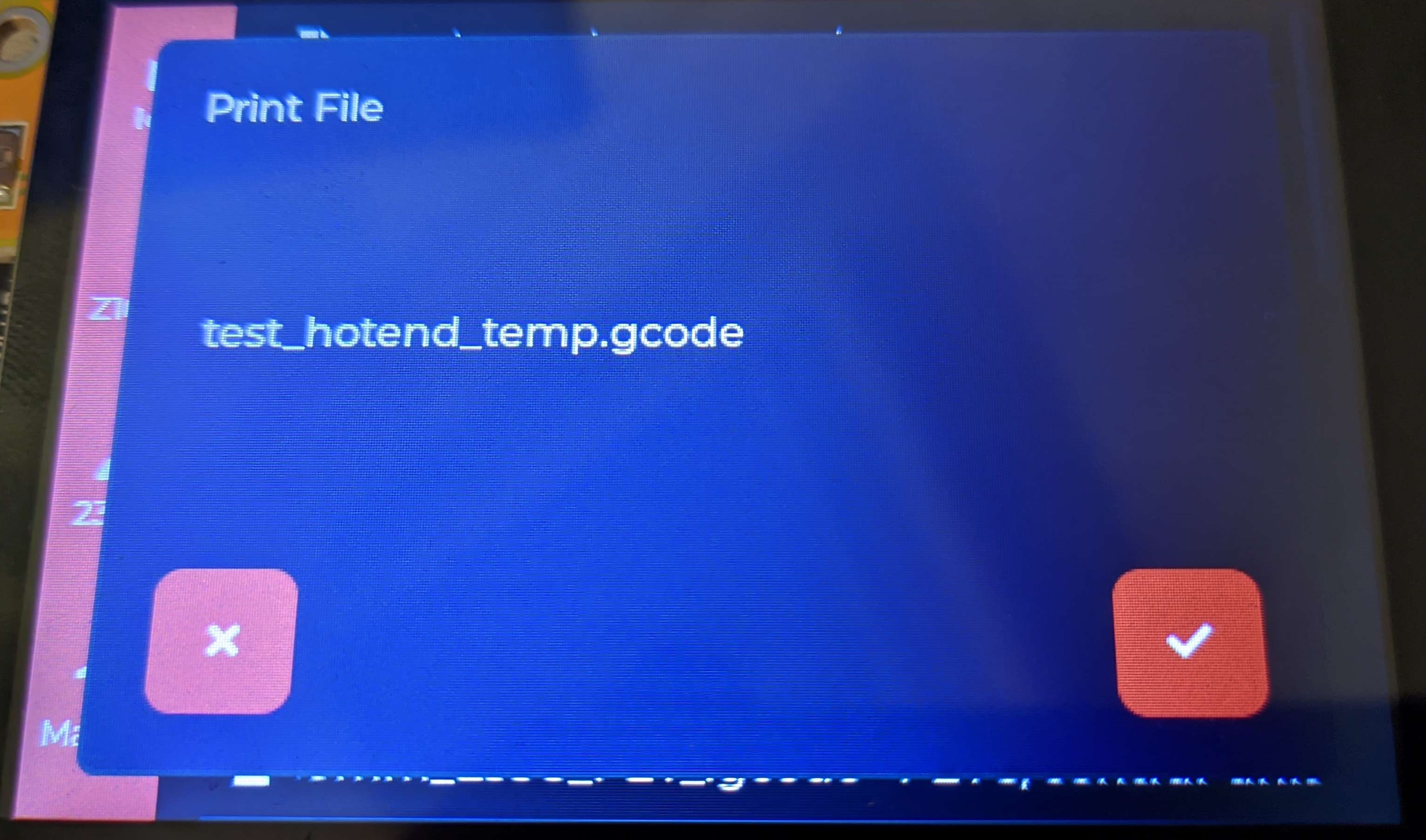

- Start a print

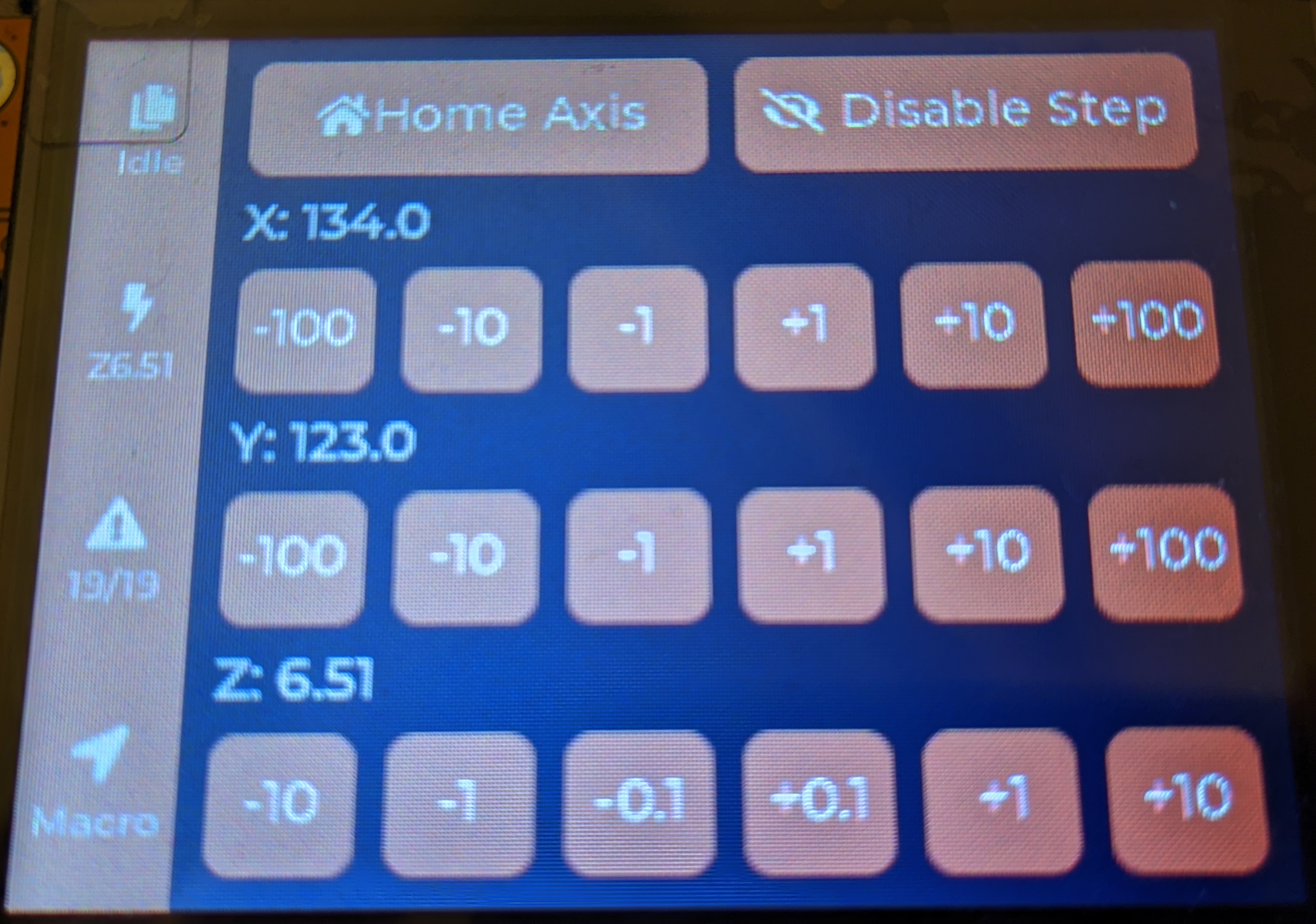

- (When the printer is idle) move the printer

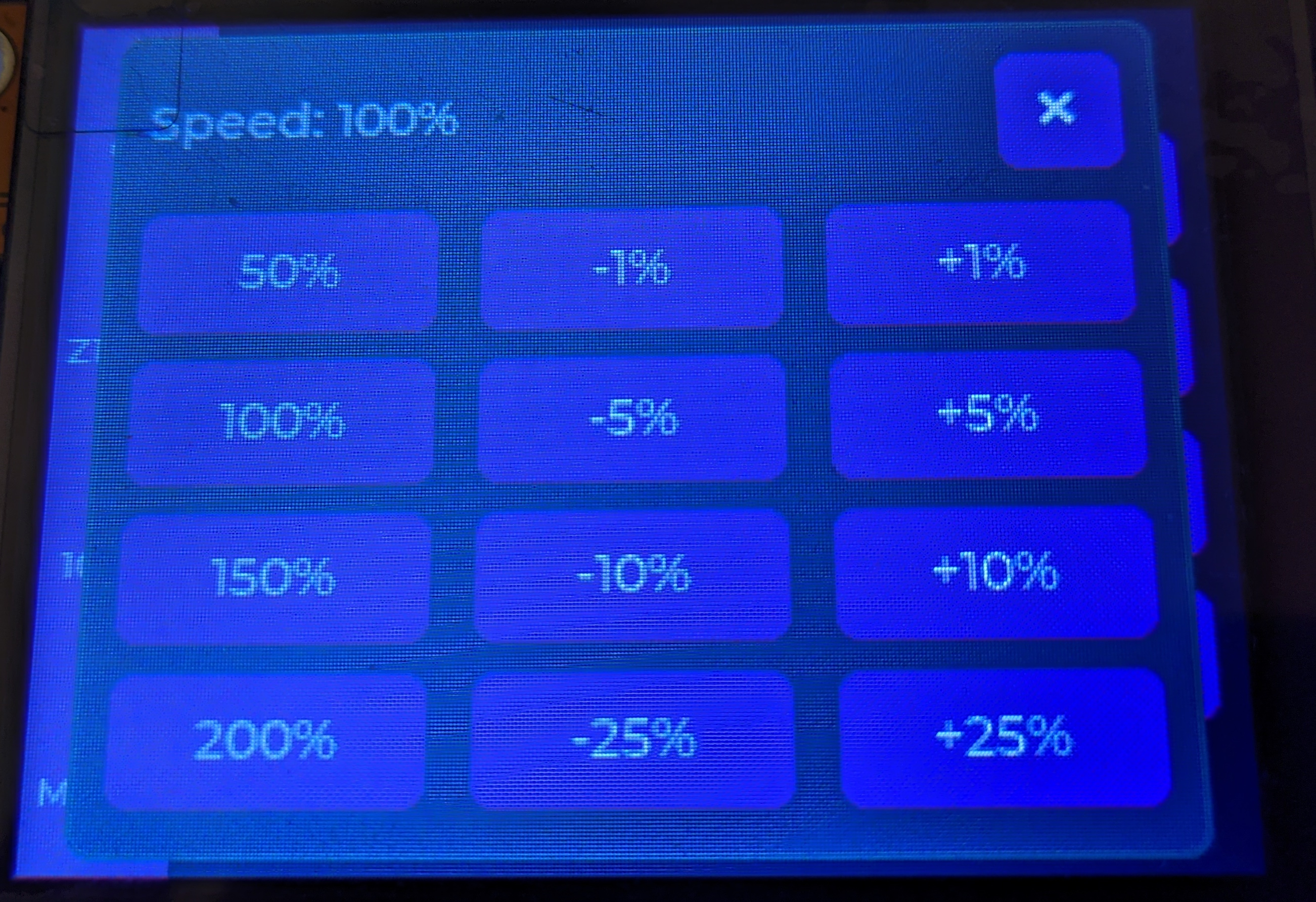

- (During a print) set fan speed, flow rate, speed and z offset

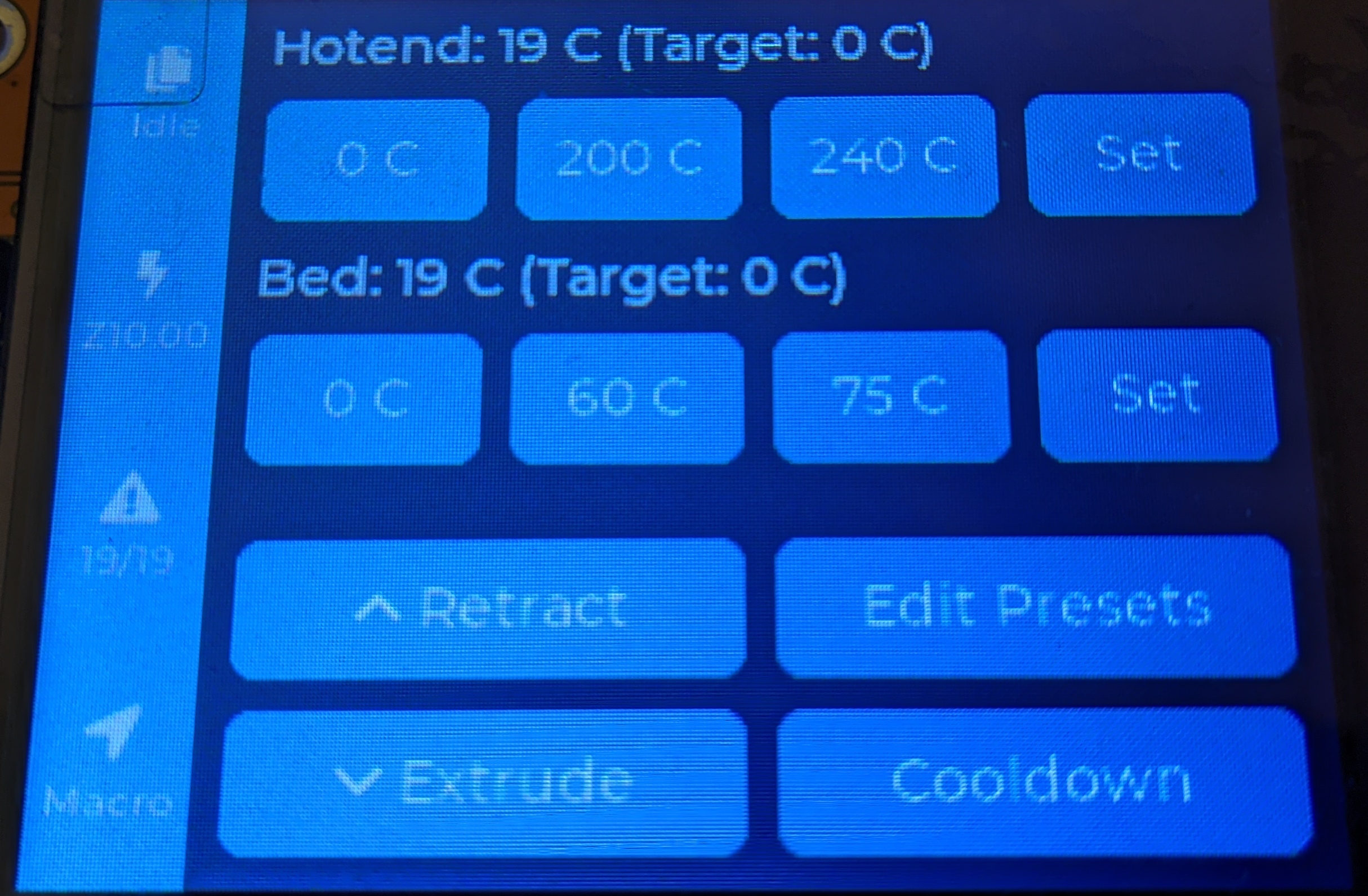

- Manage temperature
- Extrude/Retract filament

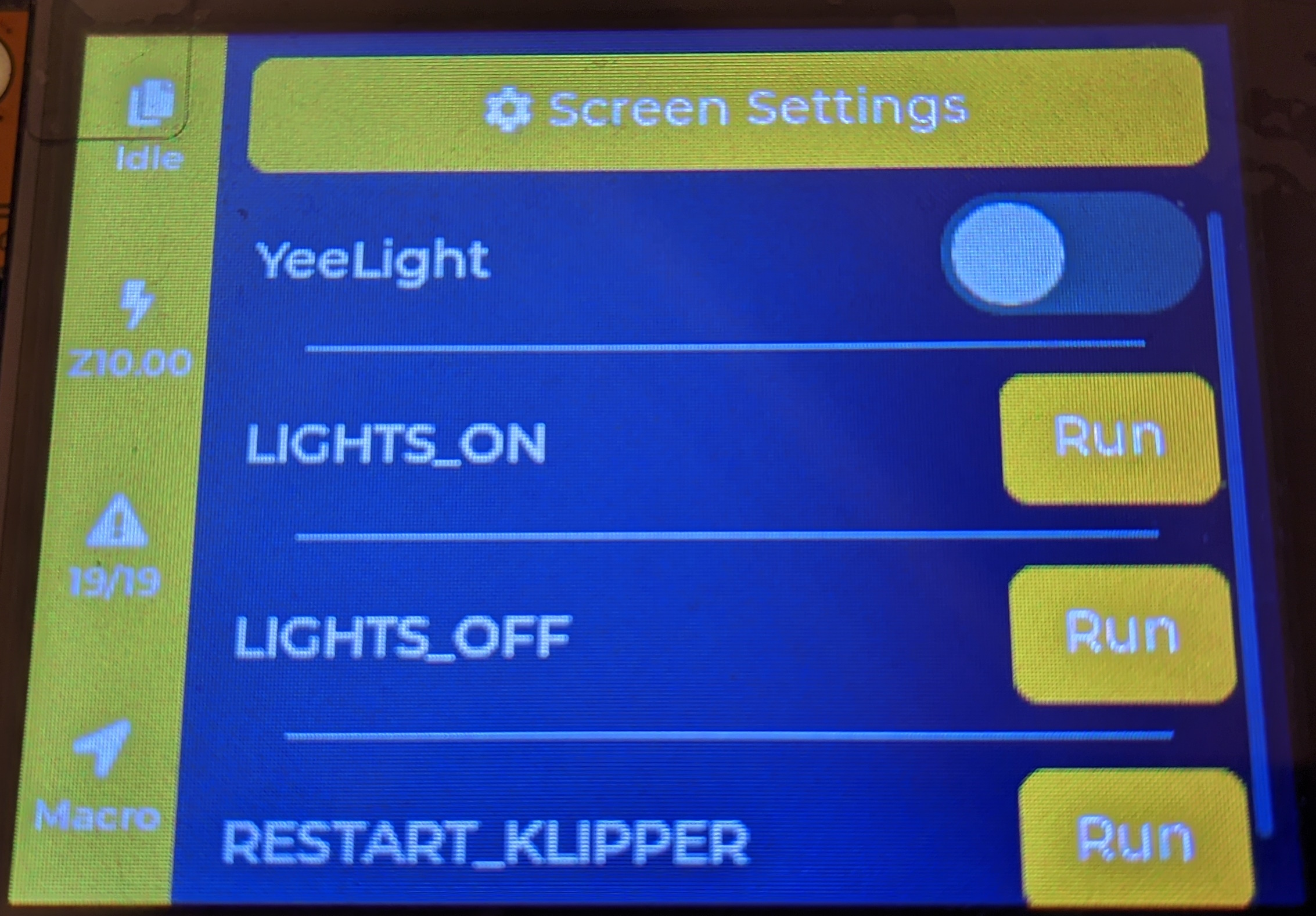

- Execute predefined gcode macros
- Toggle Moonraker power devices
- OTA updates
- Serial console over USB (115200 8n1, echo off, LF/LF)
- Control Klipper, Octoprint and Bambu printers.
- Wired Serial/Usb Klipper connection
Install
On initial install, all data should be wiped. On updates, data should be able to be kept without issues.
When there is an update available, a button in the settings will appear that can be pressed to update. If automatic updates are preferred, there is a toggle in the settings to automatically update. This will right after connecting to wifi update the screen.
Donate
If you found this project helpful, please consider a donation to my Ko-Fi. It would help out a lot in the development of this project, due to the need to buy the screens.
Thank you!
Where to buy hardware
All links below are affiliate links. Please also check yourself if there is a cheaper version available than the ones below. I have only linked ones that i have personally bought.
ESP32-2432S028R (2.8" Resistive, Cheapest)
ESP32-2432S032C (3.2" Capacitive)
- Only the capacitive version is supported! USB-C
- IPS version (not that great of a screen), Only the capacitive version is supported! USB-C
ESP32-3248S035C (3.5" Capacitive)

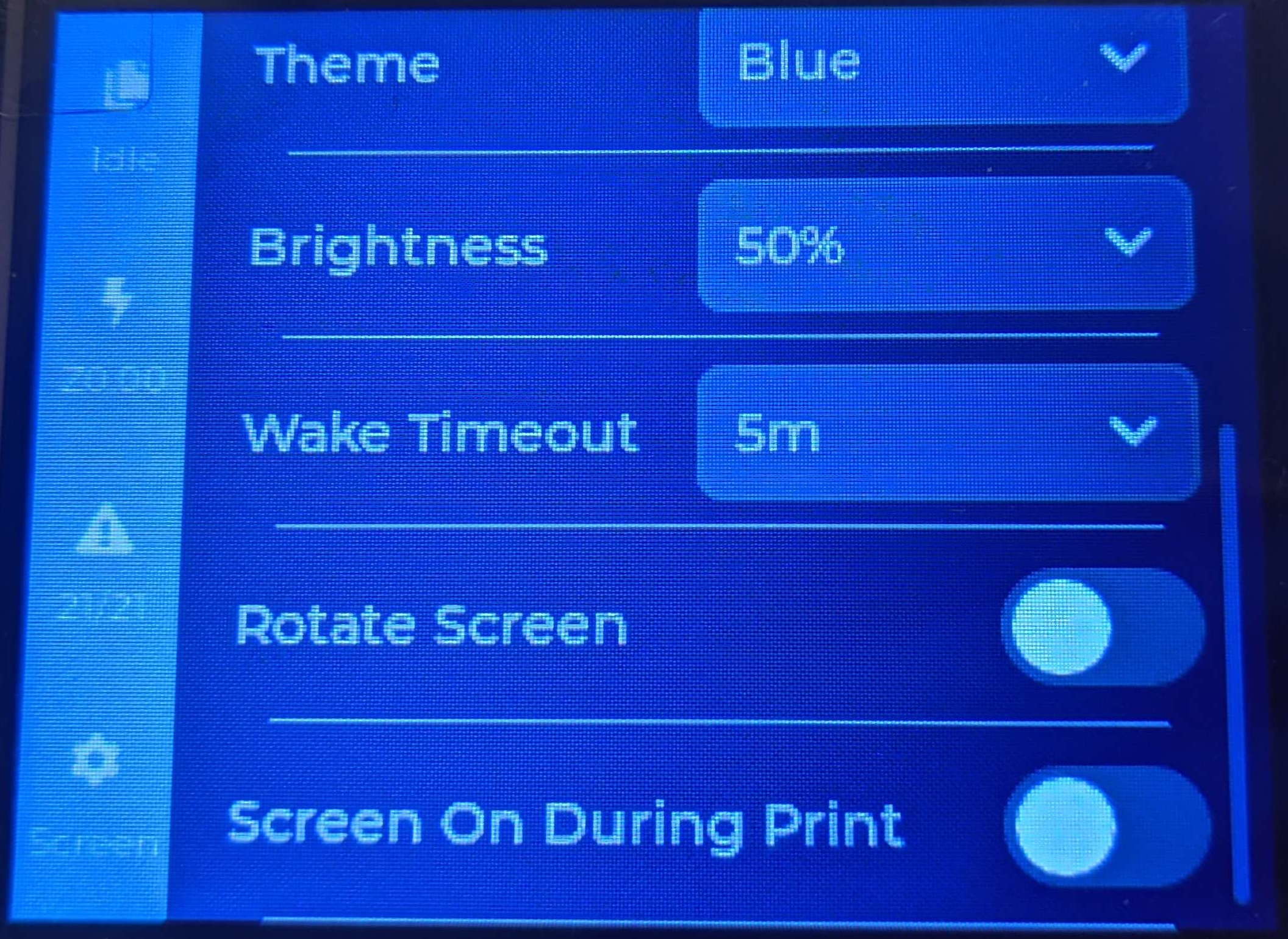

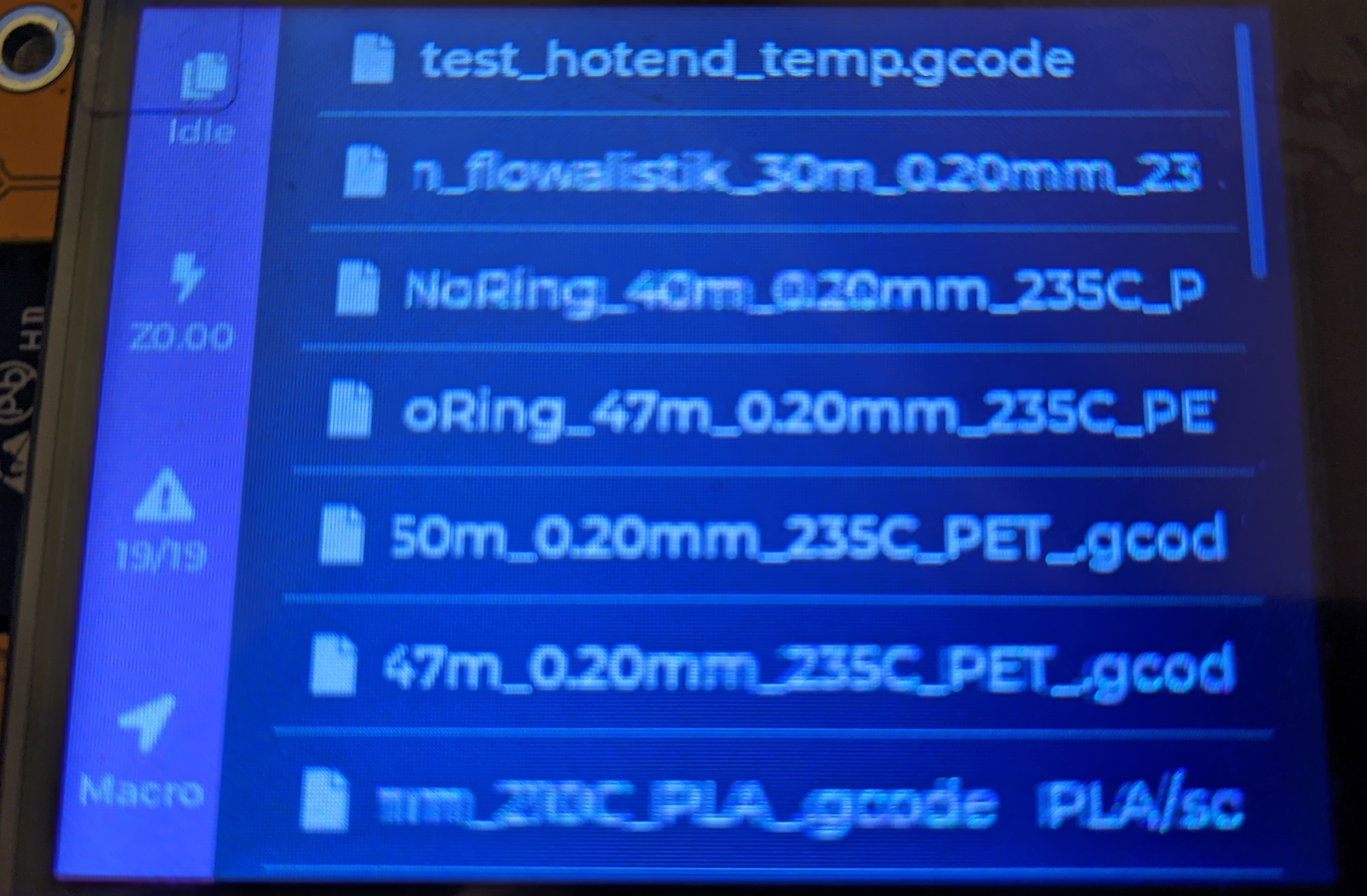

Screenshots
(Quite literally shots of the screen. I'm sorry)
| - | - |
|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Credits
- xtouch
- ESP32-Cheap-Yellow-Display
- OperatorB for the ESP32-3248S035C display driver
- esp32-smartdisplay
