Manual install

Flashing a build via the commandline

Release firmware image

1. Go to the releases tab, and download the latest firmware.zip release.
2. Open the firmware.zip archive you just downloaded, open the corresponding folder for your screen, then extract merged_firmware.bin

This merged_firmware.bin file is a ready to flash image. Note that flashing this image does wipe your current configuration.

Developer firmware image

On every change made in this repository, Github Actions automatically builds the firmware images for various screens.

0. Make sure you are logged into github
1. Go to a Github Actions build summary, then download the firmware Artifact.
2. Open the firmware.zip archive you just downloaded, open the corresponding folder for your screen, then extract merged_firmware.bin

This merged_firmware.bin file is a ready to flash image. Note that flashing this image does wipe your current configuration.

Flashing merged_firmware.bin

1. Download and extract esptool to a new folder
   • For windows, download esptool-v4.7.0-win64.zip
2. Open a terminal window and navigate to this new folder containing esptool

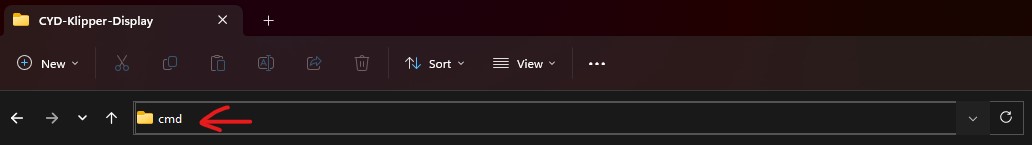

   • In windows, you can type cmd and press enter in the address bar in explorer to jump to the folder in cmd
3. Move merged-firmware.bin into this new folder
4. Connect the display to your computer
5. Execute the command esptool write_flash 0x0 merged_firmware.bin
   • Don't forget to hold down the boot button on the display

Building & Flashing via PlatformIO

0. Install the following tools:
   • Visual Studio Code and install the PlatformIO IDE plugin.
   • Git
1. Download the source code of CYD-Klipper
   • This can be done via the git clone https://github.com/suchmememanyskill/CYD-Klipper command or via the green <> Code button on Github
2. Open the CYD-Klipper folder inside the CYD-Klipper folder in Visual Studio Code

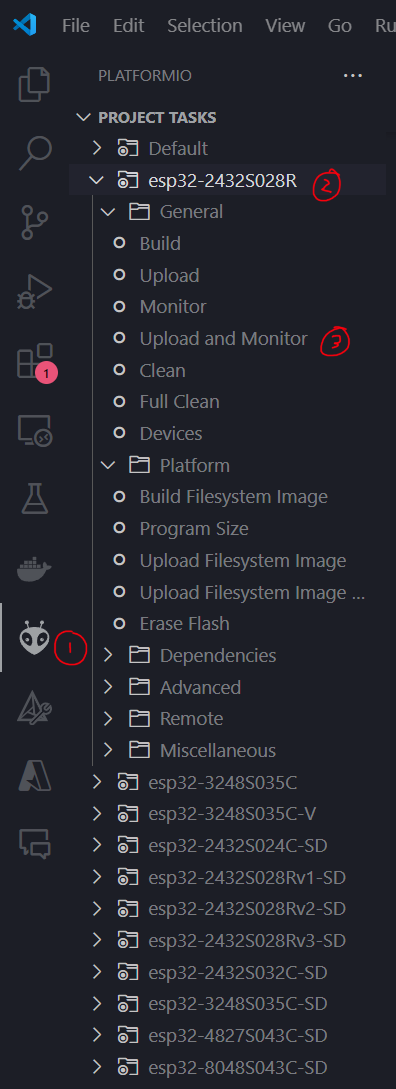

3. Click on the Alien/Bug tab (PlatformIO) on the left
4. Expand the folder/tab for your specific screen
   • Entries with the suffix '-SD' are using the smartdisplay driver. Entries without this suffix are using a custom driver
   • Usually, a custom driver is preferred over the smartdisplay driver
5. Connect the display to your computer
6. Click 'Upload and Monitor'
   • This will start compiling the code, and after upload it to the display
   • Don't forget to hold the boot button while flashing. The screen will flash when the firmware is attempted to be flashed
