CYD-Klipper

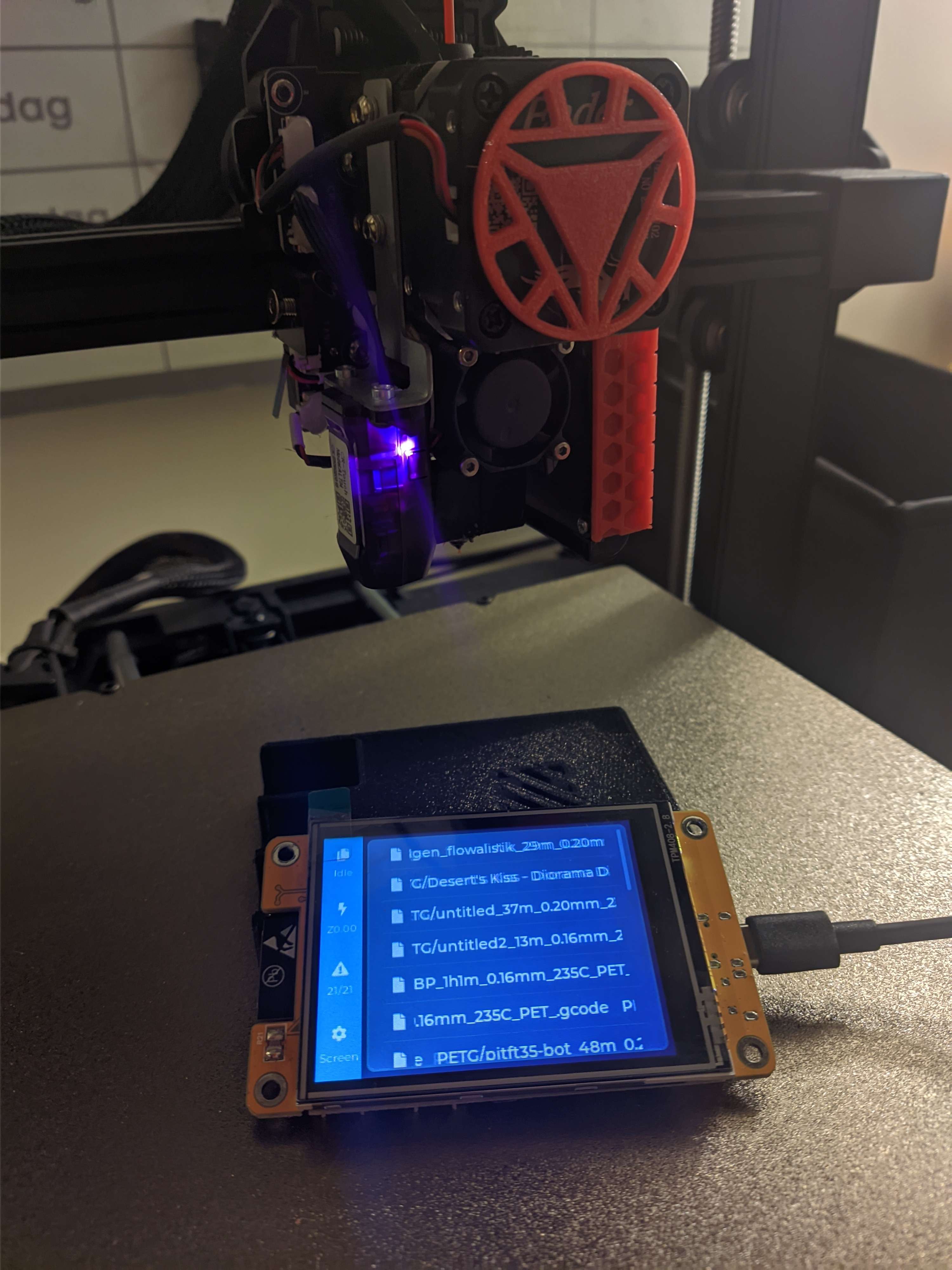

An implementation of a wireless Klipper status display on an ESP32 + screen. Uses Moonraker to fetch data.
A simple and cheap solution to use a dedicated screen with Klipper, a 3d printing Firmware.
Required hardware
A ESP32-2432S028R is required to run this project. You can find out where to buy these on the "ESP32 Cheap Yellow Display" repository.
Features

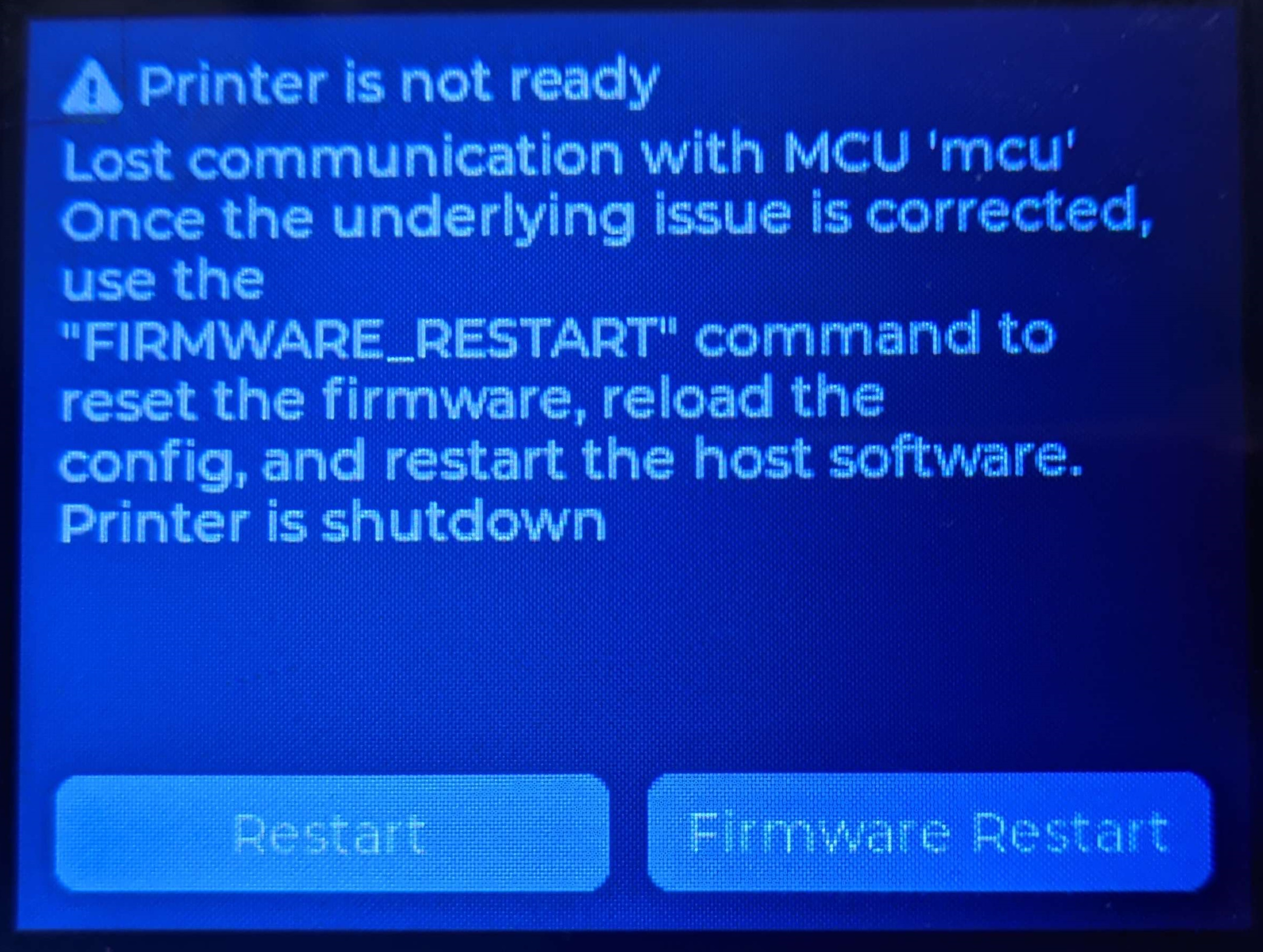

- View printer status
- View print progress and print statistics

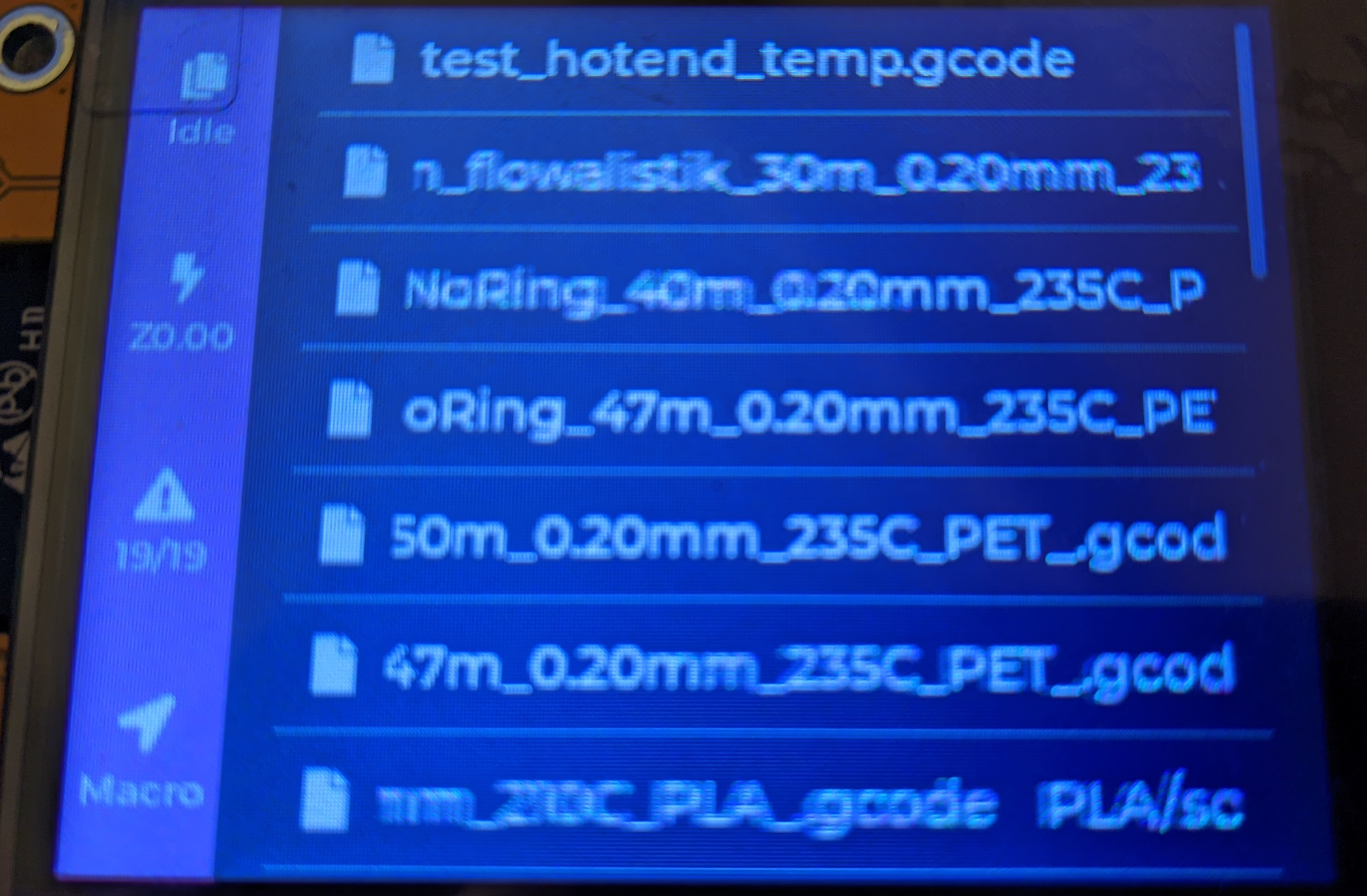

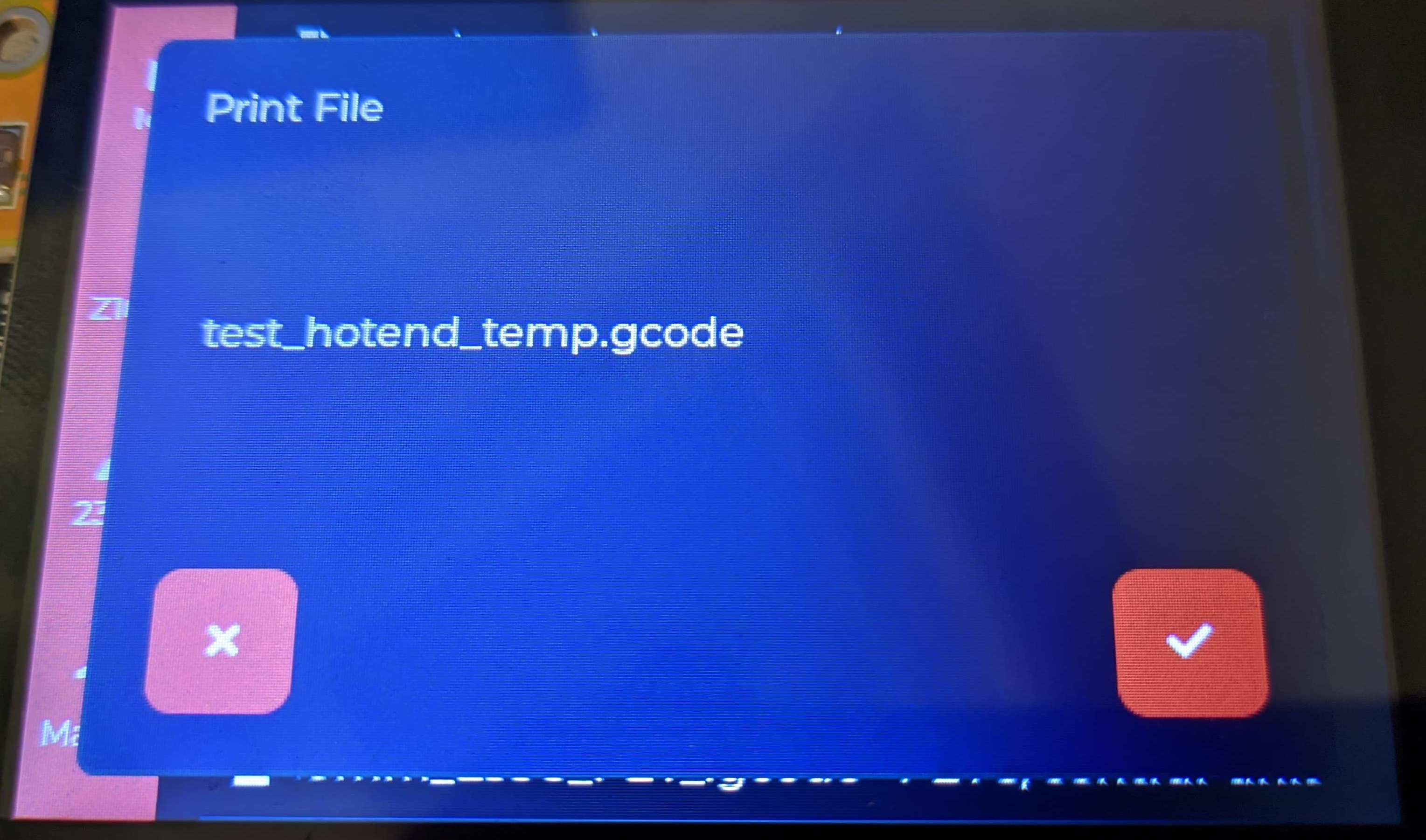

- Start a print

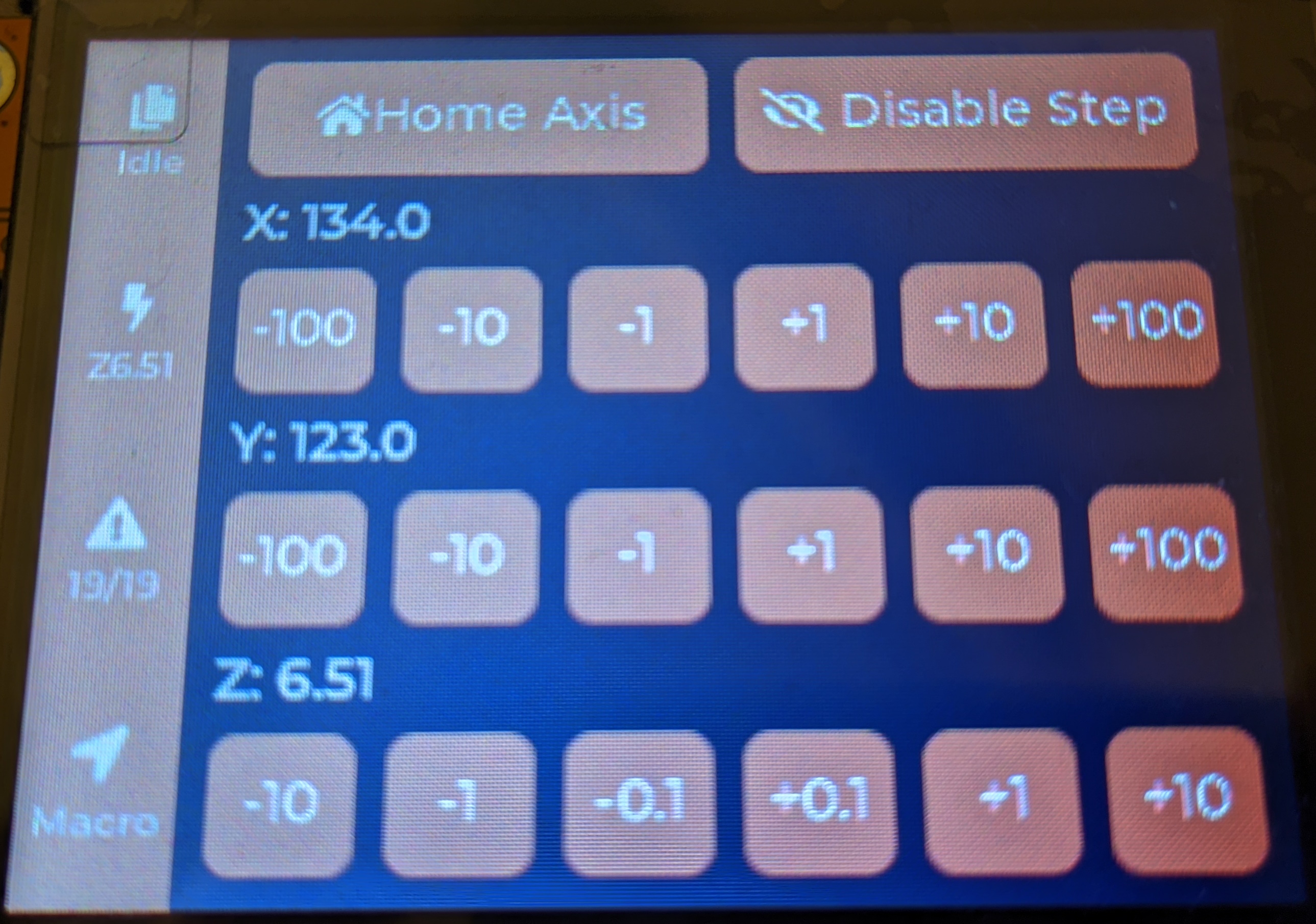

- (When the printer is idle) move the printer

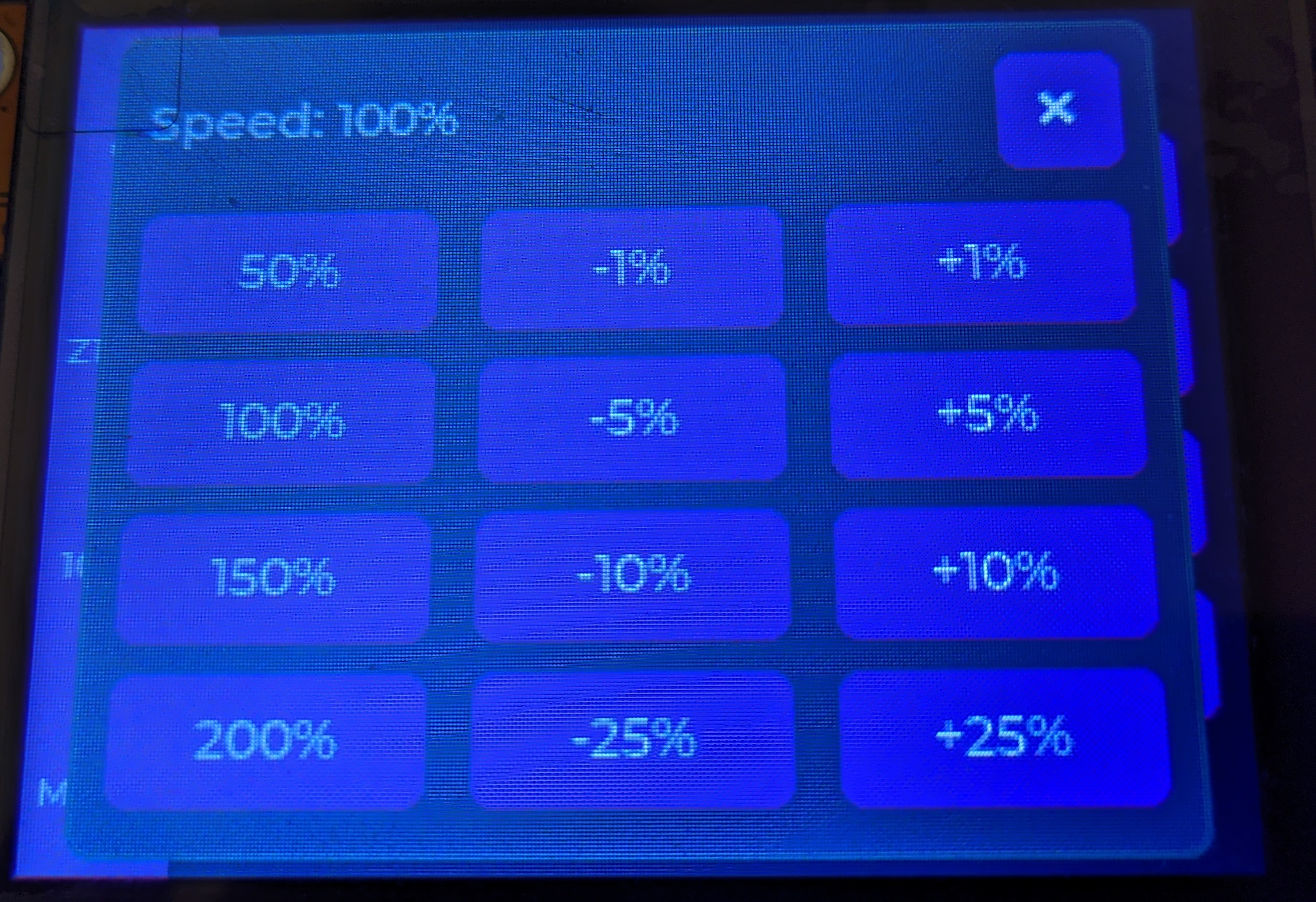

- (During a print) set fan speed, flow rate, speed and z offset

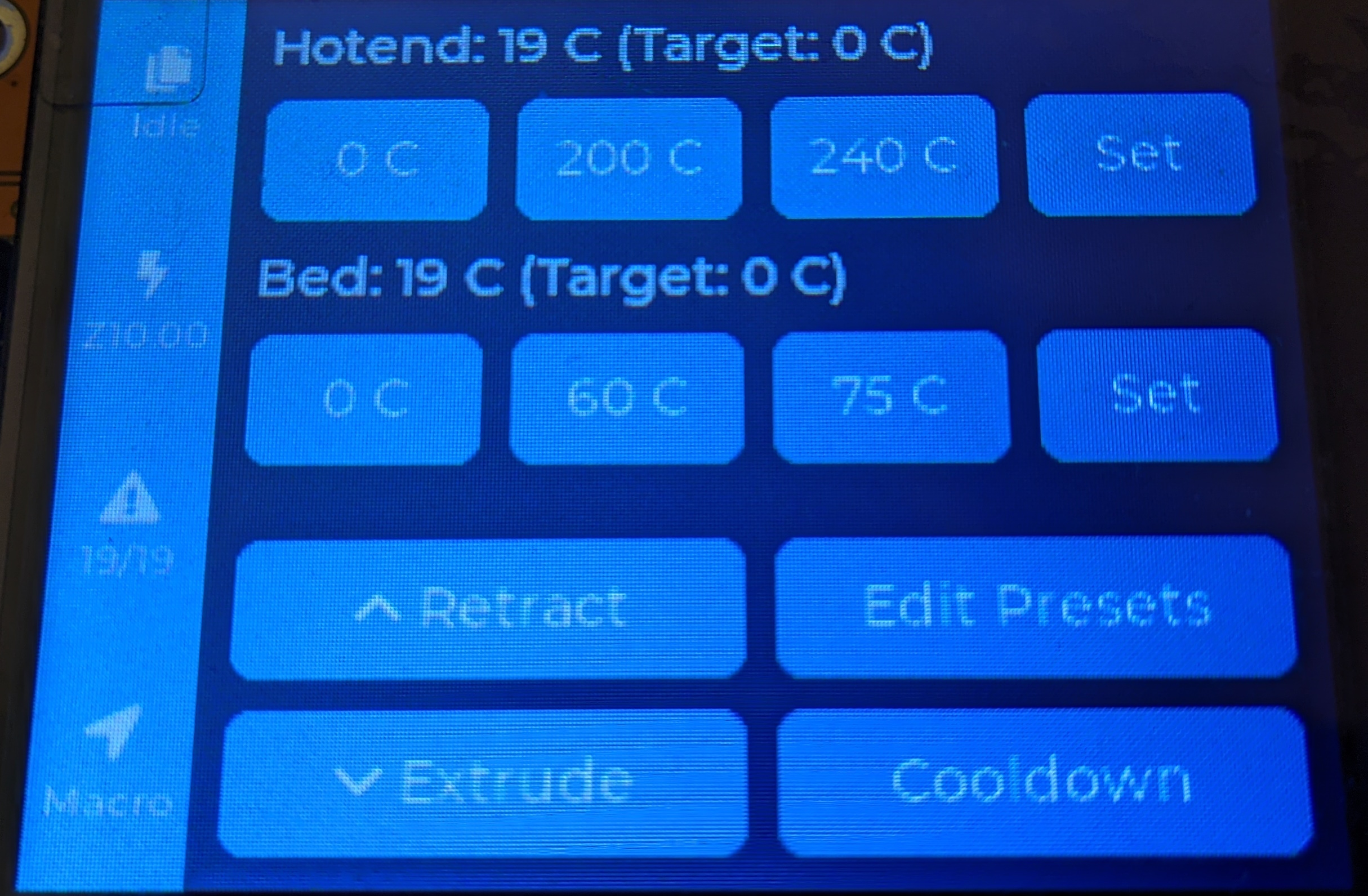

- Manage temperature
- Extrude/Retract filament

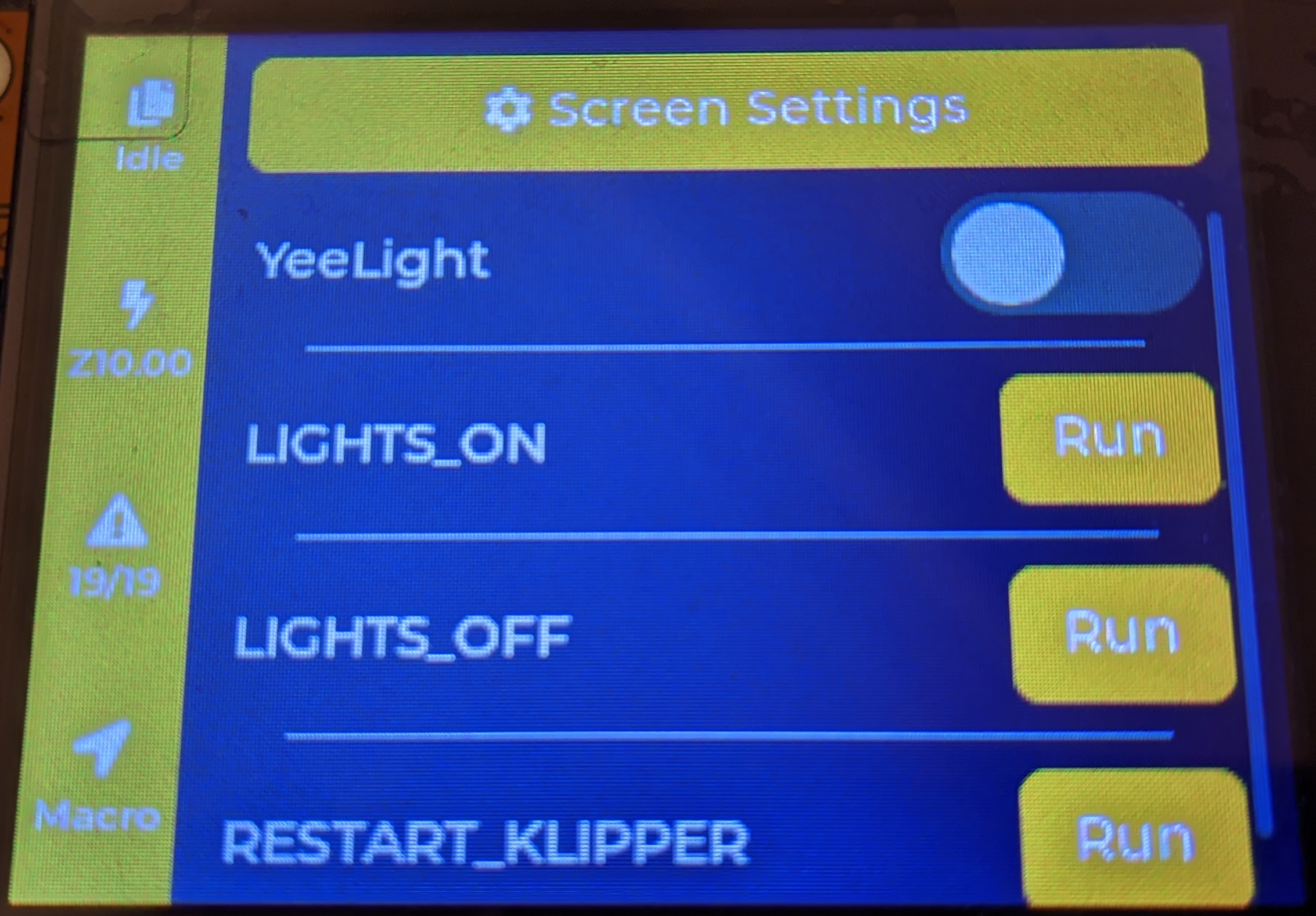

- Execute predefined gcode macros
- Toggle Moonraker power devices
Install
On initial install, all data should be wiped. On updates, data should be able to be kept without issues.
There are no 'over the air' updates. Each update has to be applied manually.

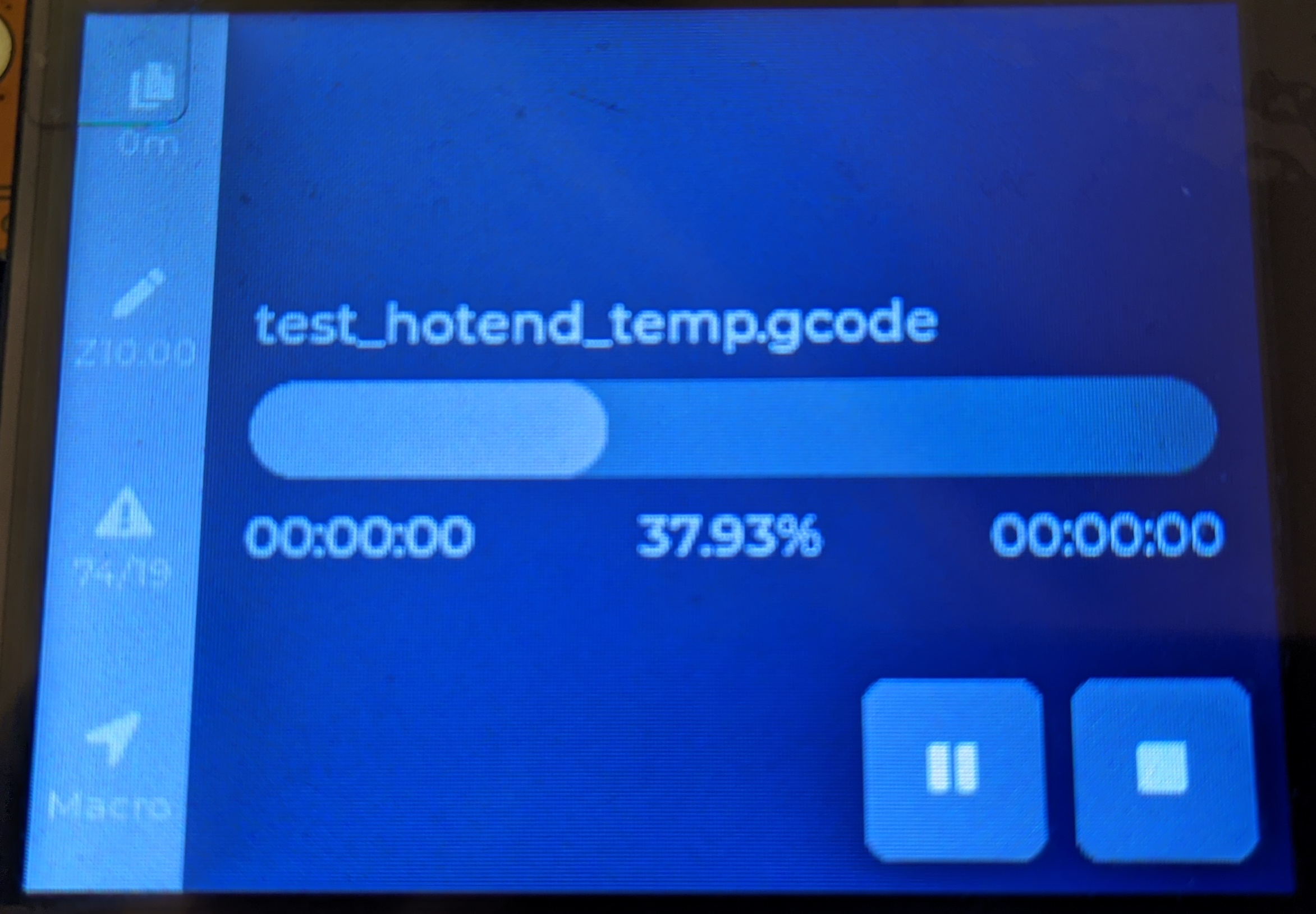

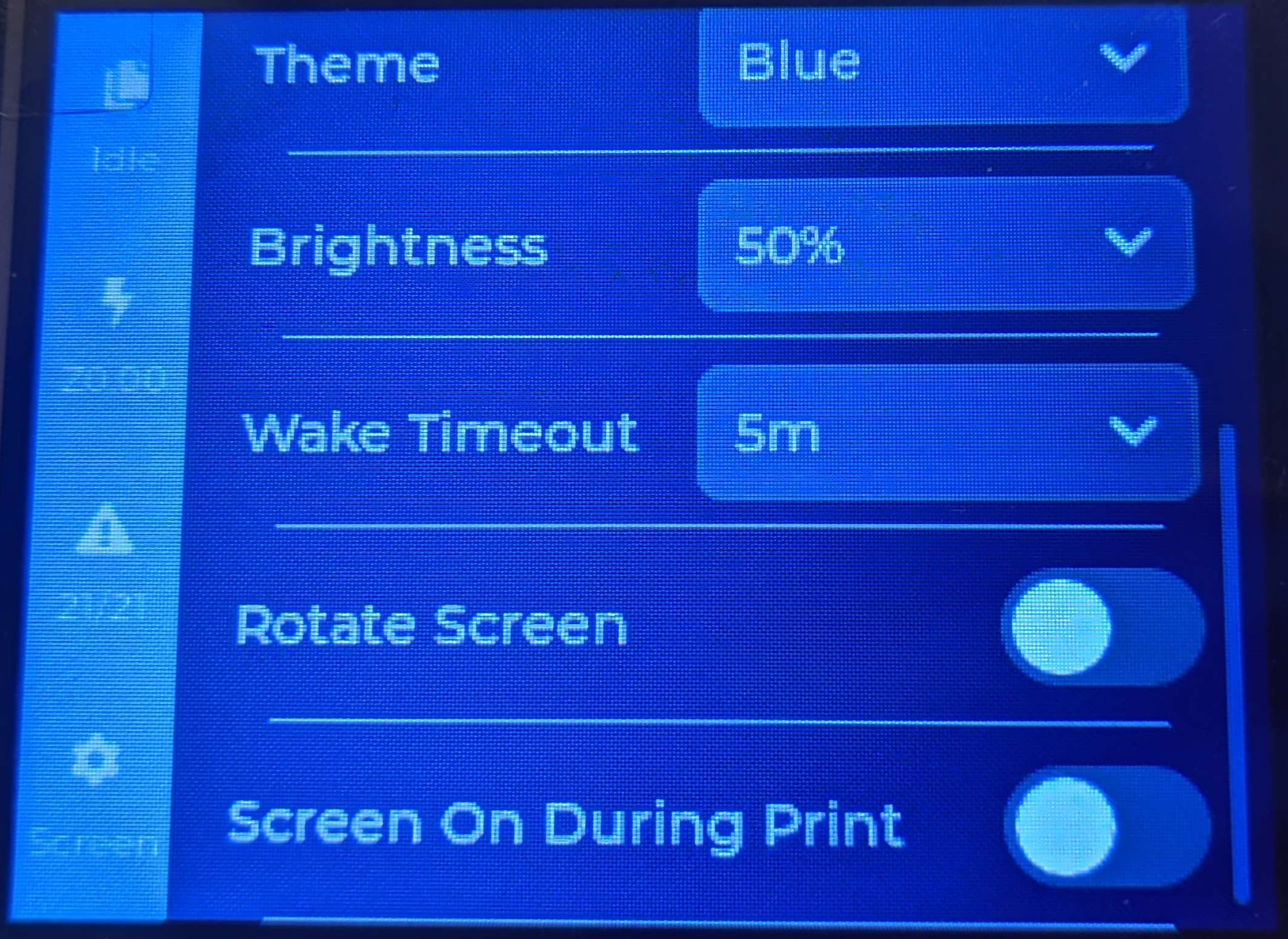

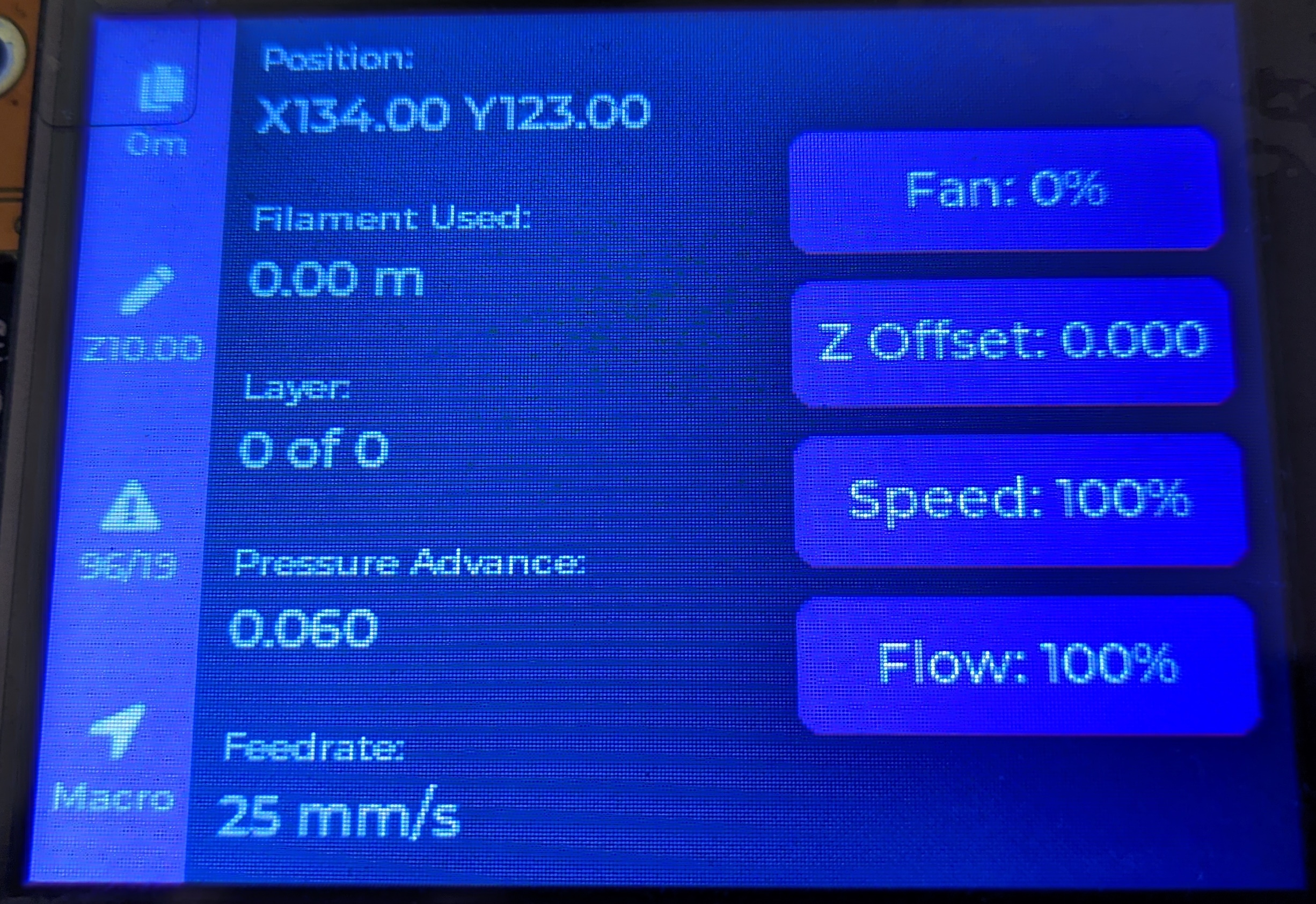

Screenshots
(Quite literally shots of the screen. I'm sorry)
| - | - |
|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Credits
- xtouch
- ESP32-Cheap-Yellow-Display
- OperatorB for the ESP32-3248S035C display driver
- esp32-smartdisplay
